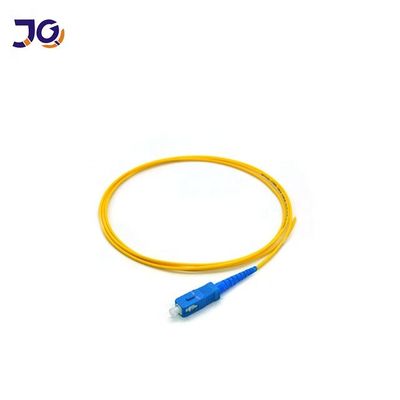

MPO ODC FTTH fibre optique SC connecteur UPC papillon bleu SC connecteur APC
ContPerson : JQ CABLE
Numéro de téléphone : +8618122383351
Whatsapp : +8618122383351
| Quantité de commande min : | 50pcs | Détails d'emballage : | Boîte de sac ou en plastique de PE et boîte de bande dessinée |
|---|---|---|---|
| Délai de livraison : | 3-5 jours de travail | Conditions de paiement : | Western Union, T/T, L/C |
| Capacité d'approvisionnement : | 30000pcs par jour |
| Lieu d'origine: | Guangzhou, Chine | Nom de marque: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO 9001 | Numéro de modèle: | tresse optique de fibre |
|
Détail Infomation |
|||
| Application: | Réseau de FTTH FTTB FTTX | Type de connecteur: | SC UPC/APC |
|---|---|---|---|
| longueur: | Peut être adapté aux besoins du client | Couleur: | Adapté aux besoins du client |
| Diamètre de câble: | 0.9/2.0/3.0mm | Fin-visage d'olive: | PC/UPC/APC |
| Matériel de veste: | PVC/LSZH/PE | Nom de produit: | tresse optique de fibre |
| Perte par insertion: | IL<≤0.2dB | ||
| Mettre en évidence: | tresses de fibre du mode 0.2dB unitaire,tresses de fibre de mode unitaire de Sc de 0.9mm,tresse 0.2dB de fibre optique |
||
Description de produit
SC, LC, FC, MU, ST, MT-RJ, E2000 connector available.
Superior qualified standard PC, APC, UPC, SPC polishing.
CSingle mode or multi mode,able size: Φ 0.9mm, Φ2.0mm, Φ3.0mm
Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available.
Available in fiber bunch, ribbon fan-out, pigtail available.
Simplex and duplex connector available.
Applicable connector: FC, SC, ST, LC…
Cable material: PVC or LSZH.OM1, OM2 or OM3 optional
Good exchange ability and good durability.
Customized specifications are welcomed.
Application
Fiber Optic telecommunications
Lan(Local Area network)
FTTH (Fiber to the home)
CATV & CCTV
High Speed transmission systems
Fiber optic sensing
Optical Characteristics
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | oM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable oD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| nti-tensile Force (N) | >70 | ||||
| remperature Range (c) | -40r+80 | ||||
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10 years’ history.
2.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
3.What is your warranty period?
25 years for fiber optic cable
4.What is your delivery time?
Usually within 3-5 working days
5.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
6.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
