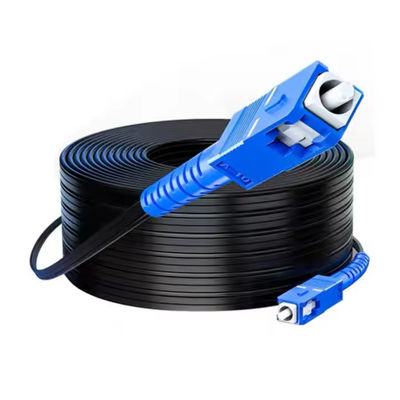

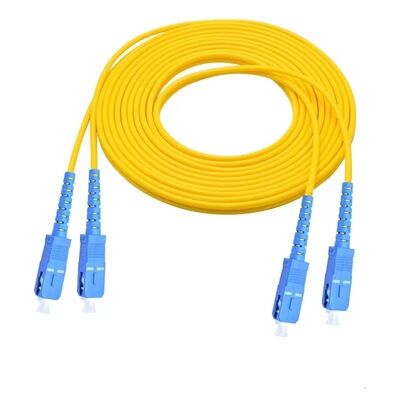

Singlemode Simplex/Duplex SC/APC SC/UPC Connector Fiber Optic Patch Cord
Single mode fiber optic patch cord is terminated with SC APC or SC UPC connectors and available in simplex or duplex configuration. It is used to connect CATV systems optical switches transmitters receivers and terminal boxes.
The patch cord features low insertion loss low return loss and high reliability. With strong protective jacket it ensures stable performance for FTTH data center and telecommunication networks.
It supports multiple connector options including SC LC ST and MTRJ with PC UPC or APC polish to meet standard and custom requirements.
✅ Features
• Low insertion loss and high return loss.
• Excellent repeatability and interchangeability.
• Stable performance with strong environmental adaptability.
✅ Applications
• Communication rooms and telecom equipment.
• FTTH Fiber to the Home networks.
• LAN Local Area Network systems.
• Fiber optic sensors and monitoring systems.
• Optical fiber communication and transmission equipment.
Optical Characteristics
|
Parameter
|
PC
|
UPC
|
APC
|
Multi-mode
|
|
Insertion loss
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
|
Return loss
|
≥40dB
|
≥50dB
|
≥60dB
|
≥35dB
|
|
Exchange
|
≤0.2dB
|
|
Repeatability
|
≤0.2dB
|
|
Servicelife
|
>1000times
|
|
Tensile strength
|
>10kg
|
|
Temperature range
|
-40°C to +85°C
|
Technical Data
|
Type
|
Standard,Master
|
|
Style
|
LC,SC,ST,FC.MU,DIN,MPO,SC/APC,
FC/APC,LC/APC.MU/APC
|
|
Fiber
|
Singlemode/Multimode
50/125,62.5/125(Multi mode) OM2&OM1
50/125,10G(Multi mode)OM3
|
|
Cable
|
Simplex,Duplex
outer diameter:3.0mm,20mm,0.9mm
PVC or LSZH
|
|
Polishing Manner
|
UPC,SPC,APC(8°&6°)
|
|
Insertion Loss
|
≤0.1dB (For Single mode Master)
≤0.25dB (For Single mode Standard)
≤0.25dB (ForMultimode)
Tested by JDSRM3750
|
|
Return Loss
(Single mode)
|
UPC≥50dB
SPC≥55dB
APC≥60dB (typ.65dB)
Tested by JDSRM3750
|
|
Repeat ability
|
≤0.1dB
|
|
Operating temperature
|
-400 C° to 850 C°
|
|
Geometry Requirement
(Single mode)
|
Ferrule Endface Radius
7mm≤R≤12mm (For APC)
10mm≤R≤25mm (For Standard)
Apex Offset≤30μm (For Master)
Apex Offset≤50μm (For Standard)
Under cut-50nm SU≤50nm
Tested by DORCZX-1
|
Recommed Products

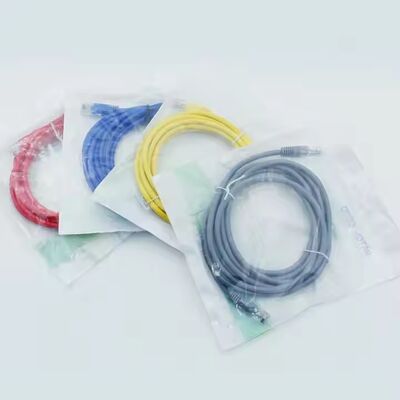

Packing & Delivery
Packing:100/Pcs in one Carton box or OEM.
Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
Deliverty: 3-5 days after payment dowm,According to ur order quantity.
Factory Pictures
✅ FAQ
1. Are you a trading company or a manufacturer
We are a professional manufacturer with over 10 years of experience, specializing in the research, development, and production of fiber optic cables, drop cables, and fiber optic patch cords. Our factory is located in Guangzhou, China, and factory visits are warmly welcomed.
2. How do you ensure product quality
All fiber optic cables are fully tested before delivery after production is completed. After price confirmation, free samples are available for quality inspection and testing.
3. Do you accept small orders
Yes, small orders are accepted. We support new projects and customers, as we believe long term cooperation often starts from small orders.
4. What is your delivery time
The standard delivery time is about 3 to 7 working days, depending on order quantity. We always arrange production and shipment as quickly as possible after payment.
