GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core

1 km
MOQ
GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Lieu d'origine: GUANGZHOU, CHINE
Nom de marque: Jiqian
Numéro de modèle: GYFTY83
Nombre de fibres: 4-288
Gaine: PE/LSZH,Noir ou votre couleur préférée
Température appropriée: -40 °C +70 °C
Type de fibre: G652D à mode unique
Certification: ISO9001 ROHS CE FCC
Fabricant: Oui
Câbles à fibre optique blindés: Oui, FRP blindé
OEM: Disponible
Mettre en évidence:

Non-metallic FRP armored fiber optic cable

,

Anti-rodent underground fiber optic cable

,

24 core FRP armored fiber cable

Informations de base
Lieu d'origine: Chine
Nom de marque: Jiqian
Certification: ISO9001 ROHS CE FCC
Numéro de modèle: GYFTY83-48C
Conditions de paiement et expédition
Détails d'emballage: Tambour en bois
Délai de livraison: Habituellement 7 jours, cela dépend de la quantité commandée
Conditions de paiement: T/T, dépôt de 30 % pour démarrer la production, 70 % payable avant la livraison
Description de produit

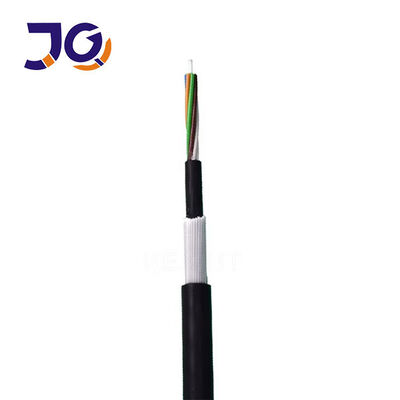

GYFTY83 Fiber Optic Cable

GYFTY83 is an all dielectric, non-metallic outdoor fiber optic cable with FRP strength member and PE outer sheath.
It features rodent resistance, lightning protection, and anti-corrosion, making it ideal for high-voltage areas, duct installation, and underground applications.

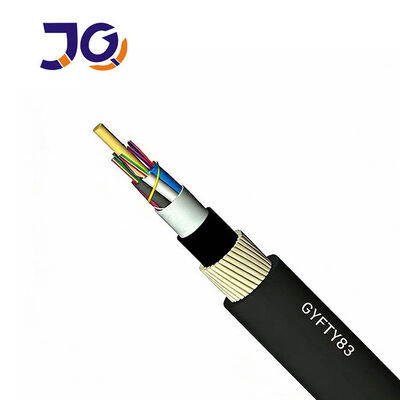

This cable adopts stranded loose tube structure, available in 4–144 cores, supporting single-mode transmission.
It provides stable performance, long service life, and reliable signal transmission for telecommunication, broadband, and power communication projects.


GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core 0
GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core 1




Application Scenarios

Suitable for outdoor duct, direct burial installation

• Applied in high-voltage power stations, power grids and areas with strong electromagnetic interference

• Ideal for lightning-prone areas due to all-dielectric non-metallic structure

• Widely used in places with serious rodent damage, such as underground pipe gallery, railway, highway, mountain areas

• Applied in petroleum, chemical industry, mining and other corrosive environments


Temperature Range -40°C~+70°C
Bending Radius:(Dynamic/Static):20D/10D
Long term/Short term Tension:1000/3000N
Long term/Short term Crush:1000/1500N



Fiber Optic G652D:



Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260
Attenuation Coefficient 1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
Proof stress level kpsi ≥100

Fiber Testing

GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core 2

Cable testing

GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core 3





Company profile:

GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core 4

1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world

Exhibition:

GYFTY83 Non-metallic Anti-rodent Fiber Optic Cable FRP Armored 24 48 96 Core 5

FAQ



Q1.What is your terms of packing?

A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements



Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.



Q3. What is your terms of Trade?

A: EXW, FOB, CFR, CIF



Q4. How about your delivery time?

A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends

on the items and the quantity of your order.



Q5. Can you provide OEM or ODM

A: Yes



Q6. What is your sample policy?

A: We provide FREE sample if we have them in stock



Q7. Do you test all your goods before delivery?

A: Yes, all of cables have to be tested before delivery



Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
