Aperçu ProduitsCâble optique extérieur de fibreChina Factory 72 Core GYFTY Dielectric Fiber Optic Cable FRP Non Metallic Waterproof HDPE Jacket
China Factory 72 Core GYFTY Dielectric Fiber Optic Cable FRP Non Metallic Waterproof HDPE Jacket
China Factory 72 Core GYFTY Dielectric Fiber Optic Cable FRP Non Metallic Waterproof HDPE Jacket China Factory 72 Core GYFTY Dielectric Fiber Optic Cable FRP Non Metallic Waterproof HDPE Jacket China Factory 72 Core GYFTY Dielectric Fiber Optic Cable FRP Non Metallic Waterproof HDPE Jacket
Contactez

China Factory 72 Core GYFTY Dielectric Fiber Optic Cable FRP Non Metallic Waterproof HDPE Jacket

Quantité de commande min : 1 km Détails d'emballage : Tambour en bois
Délai de livraison : 5-8 JOURS OUVRABLES Conditions de paiement : LC, T/T, Western Union
Capacité d'approvisionnement : 30km par jour
Lieu d'origine: Canton, Chine Nom de marque: JQ/OEM
Certification: ISO9001 ROHS CE FCC Numéro de modèle: GYFTY

Détail Infomation
Nombre de fibres: 4-288 Noyau Type de fibre: G652D à mode unique
Veste: PE, PEMD, PEHD couleur: Noir
Nom du produit: Câble à fibre optique SZ extérieur Longueur: tambour 2KM/Wooden
Structure: Tube en vrac échoué Installation: Conduit aérien
Mettre en évidence:

72 core GYFTY fiber optic cable

,

FRP non metallic outdoor fiber cable

,

waterproof HDPE jacket fiber optic cable

Description de produit

Product Description

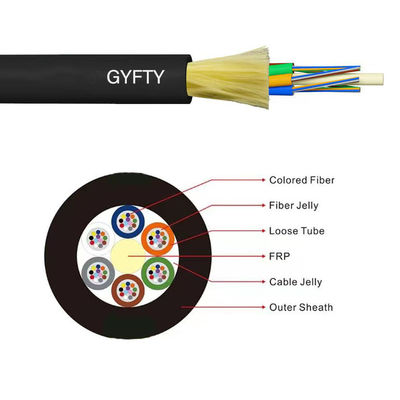

GYFTY fiber optic cable uses 250µm fibers housed in high-modulus loose tubes filled with water-blocking gel. A central FRP rod provides non-metallic strength, with tubes and fillers stranded into a compact dielectric core. The core is protected with jelly and wrapped with water-blocking materials to ensure long-term moisture resistance. A PE outer jacket completes the lightweight, durable, waterproof structure.

Key Features

  • Lightweight design with small diameter for easy installation

  • Strong mechanical and temperature performance

  • Low attenuation and stable transmission

  • Gel-filled loose tubes for enhanced fiber protection

  • Non-metal FRP strength member for excellent anti-electromagnetic interference

  • Effective water-blocking system for reliable outdoor waterproof performance

  • Durable PE jacket suitable for harsh environments

Applications

  • Aerial and duct installation

  • Outdoor distribution networks

  • Access network and local communication

  • Areas with electromagnetic interference



Optical Characteristics











G.652D



50/125um



625/125μm



Attenuation



@850nm







≤3.0dB/km



≤3.0dB/km



(+20°C)



@1300nm







≤1.0dB/km



≤1.0dB/km







@1310nm



≤0.36dB/km















@1550nm



≤0.22dB/km











Bandwidth(ClassA)



@850nm







2500MHzkm



2200MHz:km







@1300nm







21000MHz-km



2600MHzkm



NumericalAperture











0.200+0.015NA



0.275+0.015NA



CableCut-

offWavelengthλcc







≤1260nm













Cable Parameters

Fiber count Structure Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad diameter

(mm)

Nominal Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable weight

(kg/km)
4 1+5 4 1.8±0.1 1.4/1.4 1.6 8.8±0.2 62
6 1+5 6 1.9±0.1 1.4/1.4 1.6 8.8±0.2 62
8 1+5 8 1.9±0.1 1.4/1.4 1.6 8.8±0.2 62
12 1+5 6 1.9±0.1 1.4/1.4 1.6 9.0±0.2 65
24 1+5 6 1.9±0.3 1.4/1.4 1.6 9.2±0.2 68
36 1+6 12 2.2±0.1 1.6/1.6 1.6 9.2±0.2 68
48 1+5 12 2.2±0.1 1.6/1.6 1.6 9.2±0.2 68
72 1+6 12 2.2±0.1 2.0/2.0 1.6 10.6 80
96 1+8 12 2.2±0.1 2.2/3.5 1.6 12.0 103
144 1+12 12 2.2±0.1 2.2/6.4 1.8 15.0 180



China Factory 72 Core GYFTY Dielectric Fiber Optic Cable FRP Non Metallic Waterproof HDPE Jacket 0



FAQ

1. Are you a trading company or manufacturer?
We are a direct manufacturer with 10+ years of experience in fiber optic cable production, including outdoor cables, drop cables, and patch cords. Our factory is located in Guangzhou. Welcome to visit us.



2. How is your product quality?
All fibers are tested before shipment. After confirming the price, free samples can be offered for quality checking.



3. Do you accept small orders?
Yes. Small orders are supported, especially for new projects or trial orders.



4. What is your delivery time?
Normally 3–7 working days depending on the order quantity. We will arrange shipment as soon as payment is received.



5. Do you offer OEM service?
Yes. OEM/ODM is available, including logo printing and customized designs based on your requirements.
