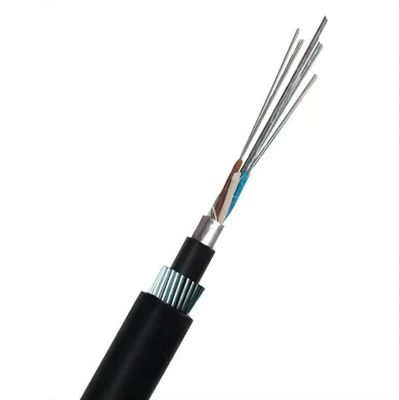

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube
24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube
Contactez

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube

Quantité de commande min : 1 km Détails d'emballage : Tambour en bois
Délai de livraison : 5-8 jours ouvrables Conditions de paiement : LC, T/T, Western Union
Capacité d'approvisionnement : 4500KM par mois
Lieu d'origine: Guangzhou, Chine Nom de marque: JQ/OEM/Customize
Certification: ISO9001 ROHS CE FCC SDOC Numéro de modèle: GYTA33

Détail Infomation
Type de fibre: G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 Couleur: Noir ou orange ou adapté aux besoins du client
Veste: Le produit doit être présenté dans un emballage de qualité supérieure. Nombre de fibres: 4 à 72 noyaux
Nom du produit: Câble blindé à tube libre toronné Longueur: 2 km ou longueur personnalisée
Installation: Antenne et conduit OEM: Disponible
Mettre en évidence:

24 core underwater armored fiber optic cable

,

48 core stranded loose tube fiber cable

,

GYTA33 underground fiber optic cable

Description de produit

Product: Submarine Optical Fiber Cable (GYFTY33)



Overview The GYFTY33 is a heavy-duty, water-proof fiber optic cable based on the GYFTY structure. It is engineered with multi-layer protection to ensure superior waterproofing and resistance to mechanical crushing (anti-extrusion).





Structural Composition (Inside-Out)

  1. Core: GYFTY fiber optic cable base.

  2. Moisture Barrier: Longitudinal aluminum tape coating.

  3. Inner Sheath: Extruded Polyethylene (PE) layer.

  4. Armoring: Single or double layer of thin round steel wire (wrapped longitudinally).

  5. Outer Sheath: Final extruded Polyethylene (PE) protective layer.

Key Features

  • Enhanced Waterproofing: Dual protection via aluminum tape and PE sheathing.

  • High Mechanical Strength: Round steel wire armor provides excellent anti-extrusion and tensile strength for underwater or harsh environments.



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

item
value
Model Number
GYTA33
Type
Outdoor Fiber Optic Cable
Place of Origin
Guangdong,China
Brand Name
jiqian
Number of Conductors
≥ 10
Fiber count
2-288 Cores
Fiber Type
G652D Single mode or as your request
Central strength member
steel wire
Armoured
Al tape
Outer Sheath
PE
Cable Structure
Multi-Loose Tube Aluminum Tape armor
Color
Black or as your need
Application
Direct burial, underground,sea
Certification
CE/ROHS/ISO9001 /ANATEL
Note : This datasheet can only be a reference, but not a supplement to the contract.
Please contact our sales people for more detailed information

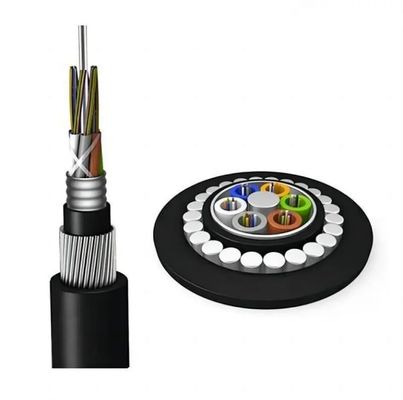

Product Construction

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 0

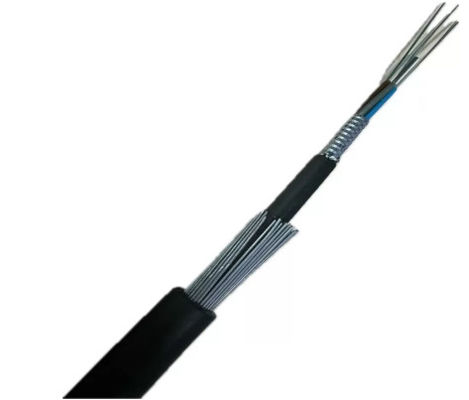

Cable Picture

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 1

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 2

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 3



Application

Suitable for directly buired laying or Underwater method

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 4



Related-products: GYTA53

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 5



Packing

1/2/3/4km or customized length export wooden drum

professional, environmentally friendly, convenient and efficient packaging services will be provided.

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 6

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 7

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 8

1. Factory Directly Supply Price.

2. Life Time Warranty:More 25years

3. Fastest Delivery Time: 1 days for Samples, 3-15 days for bulk production.

4. 100% test before shipping.

5. OEM/ODM is available.

6. Professional manufacturer. Welcome to visit our factory!

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 9



We Support OEM and Customize products.

Welcome to your inquiry! Welcome to visit our facotry!
Contact me at +86 18122384553 to get free sample.
