Single Jacket 24 Core 200m Span Adss Aerial Fiber Optic Cable

Contactez

Câble optique aérien de fibre d'Adss de la veste 24 d'envergure simple du noyau 200m

Quantité de commande min :	1km	Détails d'emballage :	Tambour en bois
Délai de livraison :	5-8 jours de travail	Conditions de paiement :	L/C, T/T, Western Union
Capacité d'approvisionnement :	4500km par mois

Lieu d'origine:	Guangzhou	Nom de marque:	JQ/OEM
Certification:	ISO9001	Numéro de modèle:	ADSS-24B1

Détail Infomation
Type de fibre:	YOFC ou Fiberhome comme demande	Compte de fibre:	2-144 noyau
Couleur:	Noir, adapté aux besoins du client	longueur:	2km ou longueur adaptée aux besoins du client
Matériel de veste:	PE ou À	NOM:	Câble de fibre optique d'ADSS
Porteur central:	Porteur axial de FRP	Température de fonctionnement:	-40 \| +60 C
Envergure:	50/100/200/300/400m	installation:	antenne autosuffisante
Mettre en évidence:	200m Span Adss Aerial Fiber Optic Cable , 24 Core Adss Aerial Fiber Optic Cable , 200m Span adss fiber cable

Description de produit

Single Jacket 200m Span Single Mode Adss Aerial 24 Core Fiber Optic Cable

Product Description

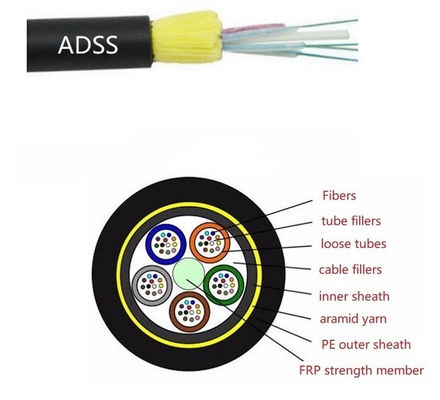

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Câble optique aérien de fibre d'Adss de la veste 24 d'envergure simple du noyau 200m 0

Features

Crush resistance and flexibility,The following measures are taken to ensure the cable watertight

100% cable core filling,Loose tube filling compound

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Single Fiber Reinforced Plastic as the central strength member

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Data

Span : 100m

under 110kv

24core

structural

parameter

Central strength components : FRP

Diameter : 1.5mm

Loose tube (jelly filled )

Outer diameter :1.8mm

Inner sheath PE

Thickness : 0.9mm

outer sheath PE

Thickness :1.8mm

Technical

parameter

outer diameter of Cable

10.0mm

cable cross-sectional area

95.03 mm2

Fiber model

G.652D

Weight of cable

85kg/km

Rated tensile strength (RTS)

10 kn

Minmum allowed tension(MAT)

4kn

EDS

3.2kn

Young's modulus

7.8 kn/mm2

Coefficient of thermal expansion

1.810-6/°C

Cruss resistance

Long term :1100 n/100mm

short term:2200 n/100mm

Permission bent radius

Long term (when running) 220 mm

Short term (when laying) 360 mm

Product Picture

Application

Suitable for Aerial Laying method

Storage / Operating Temperature: -40℃~+70℃

Package Detail

Export Wooden drum,Normal shipping length of the cable will be 2km or 3km.

Other length is also available if required by buyer.

Mark:Usually we only attach the test report on the packaging, but your request is available too.

For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

Câble optique aérien de fibre d'Adss de la veste 24 d'envergure simple du noyau 200m 2

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
